• Body, standard
• Bumpers, front and rear chrome with step-pad (Included with (ZR7) Chrome Appearance Package.)
• Door, swing-out passenger-side, 60/40 split
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Glass, swing-out rear cargo door windows
• Glass, swing-out side door windows
• Grille, chrome with dual composite halogen headlamps (Included and only available with (ZR7) Chrome Appearance Package.)
• Headlamps, halogen
• License plate kit, front
• Mirrors, outside manual, Black
• Tire, spare P245/70R17 all-season, blackwall (Requires CG13406 or CH13406 models standard tire.)
• Tires, front P245/70R17 all-season, blackwall (Requires CG13406 or CH13406 models standard tire.)
• Tires, rear P245/70R17 all-season, blackwall (Requires CG13406 or CH13406 models standard tire.)
• Wheel trim, chrome center cap (Upgradeable to (P46) 4 - 17" x 7.5" (43.2 cm x 19.1 cm) aluminum uplevel wheels on CG13406 or CH13406 models.)

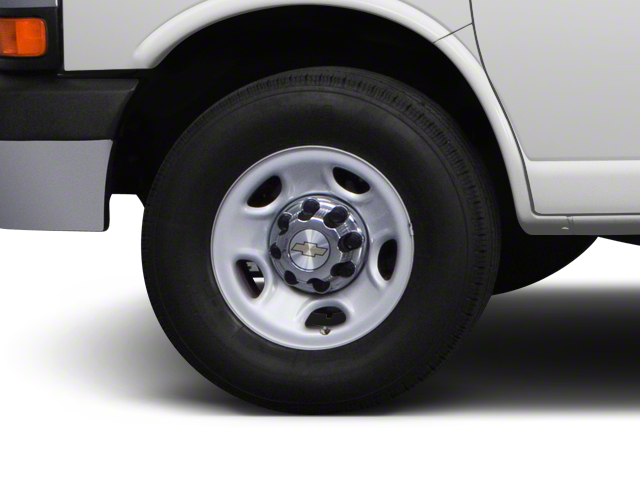

• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel includes steel spare (Requires CG13406 or CH13406 models. Includes (P03) Wheel trim, chrome center cap.)
• Wipers, front intermittent wet-arm with pulse washers

• Air conditioning, rear

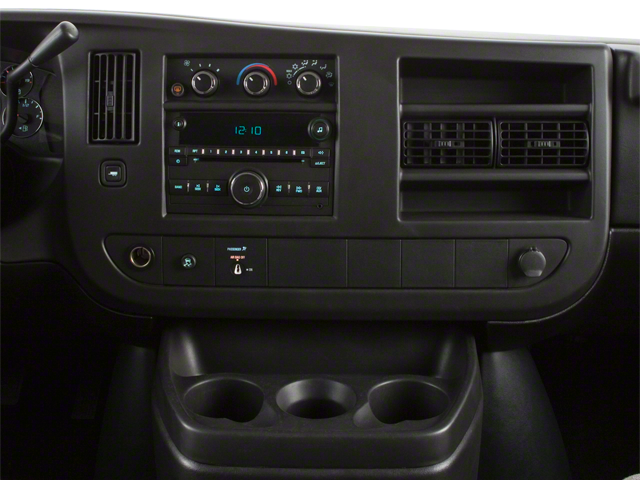

• Air conditioning, single-zone manual
• Assist handle, front passenger
• Compass, 8-point digital located in the Driver Information Center (Included and only available with (C69) rear air conditioning.)

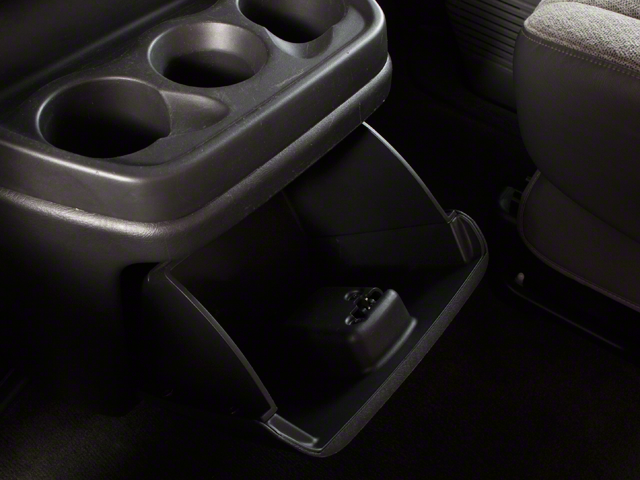

• Console, deluxe with swing-out storage bin
• Convenience Package, Tilt-Wheel and (K34) cruise control
• Convenience Package, power windows and door locks
• Cruise control (Included and only available with (ZQ3) Convenience Package, tilt-wheel and cruise control.)
• Defogger, front and side windows
• Door locks, power with lock-out protection (Included with (ZQ2) Convenience Package. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Floor covering, full-floor color-keyed carpeting with front and rear rubberized vinyl floor mats
• Headliner, cloth
• Heater, rear auxiliary
• Lighting, auxiliary with reading and underhood lights
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• Mirror, inside rearview manual day/night
• Oil life monitor
• Remote Keyless Entry with 2 transmitters and remote panic button

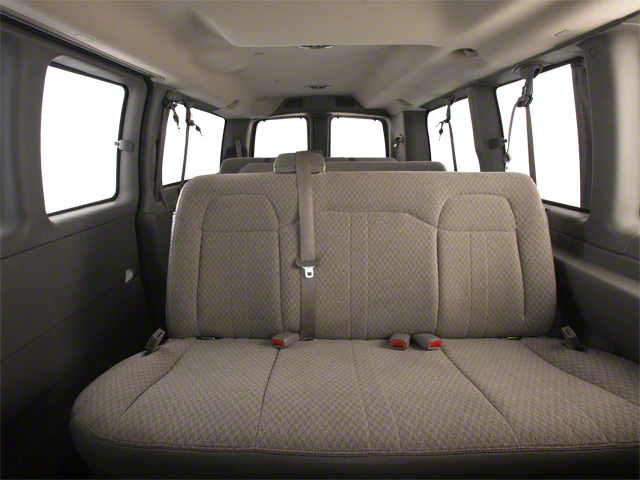

• Seating, 8-passenger, (2-3-3 seating configuration) (Standard on CG13406 or CH13406 model only. Available on CG23406 or CG33406 models.)

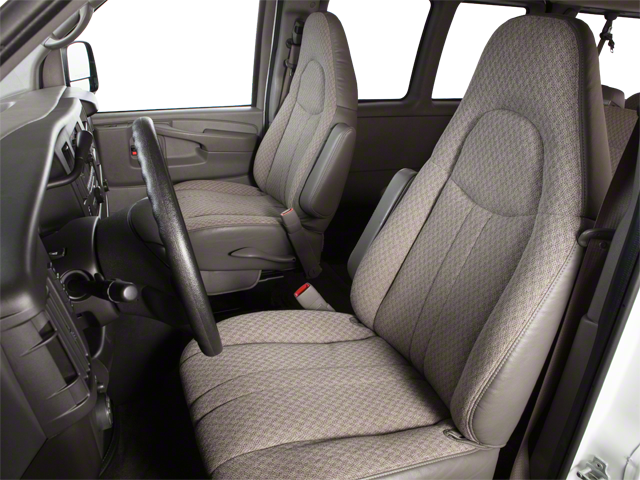

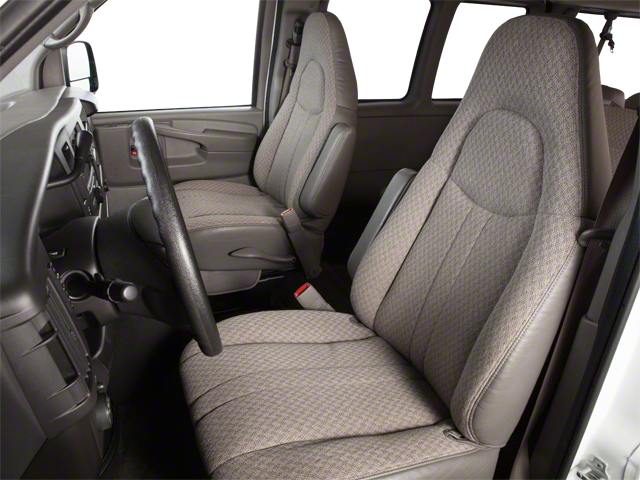

• Seats, front bucket with Custom Cloth trim head restraints and inboard armrests (Requires (**G) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with Custom Cloth trim. Head restraints are not available on rear bench seats.)

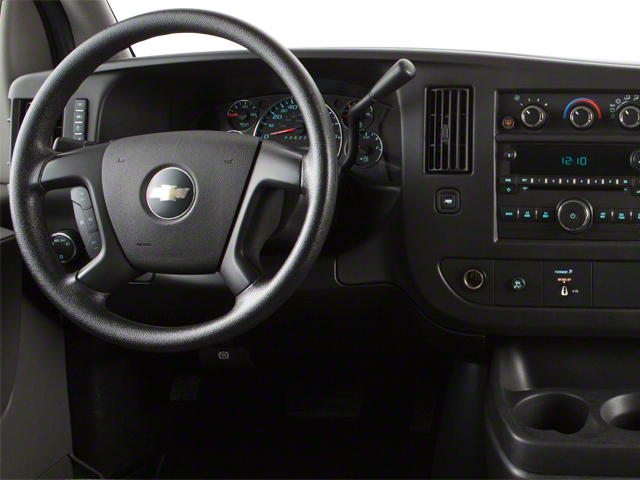

• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Warning tones, headlamp on and key-in-ignition

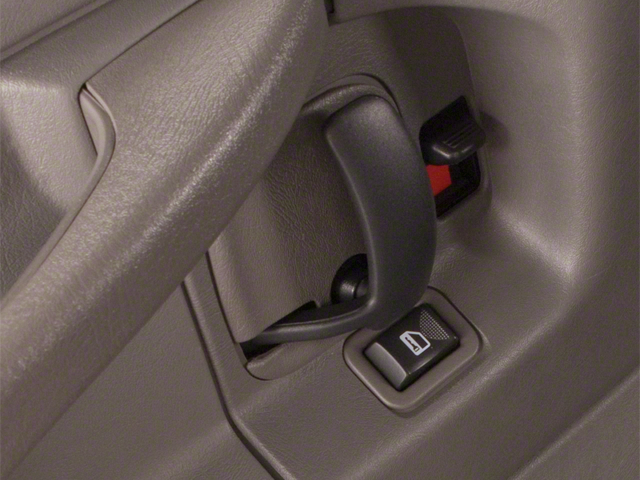

• Windows, power

• All-wheel drive
• Alternator, 145 amps (Included with (C69) rear air conditioning.)
• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Steering, power
• Suspension, front independent with torsion bar (computer selected) and stabilizer bar (Standard and only available on *H13406 model.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch for models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head/side-curtain provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Daytime Running Lamps
• Door beams, steel-side
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• OnStar, 6 months of Directions and Connections plan includes, Automatic Crash Response, Emergency Services, Crisis Assist, First Assist, Injury Severity Predictor, Stolen Vehicle Assistance, Stolen Vehicle Slowdown, Remote Ignition Block, Remote Door Unlock, Roadside Assistance, Remote Horn and Lights, Turn-by-Turn Navigation with OnStar eNav, OnStar Vehicle Diagnostics, Hands Free Calling and available OnStar RemoteLink mobile app (Visit onstar.com for details and system limitations.)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Tire Pressure Monitoring System (does not apply to spare tires)

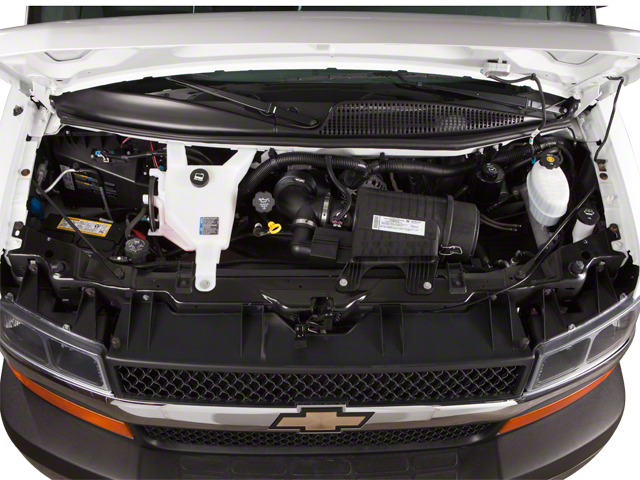

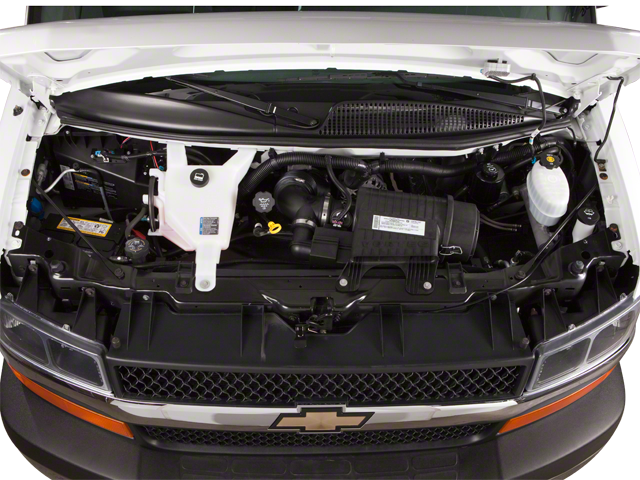

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• (310 hp [231.1 kW] @ 5200 rpm
• 334 lb-ft of torque [450.9 N-m] @ 4500 rpm) (STD)

• 3rd Row Seat
• Smart Device Integration
• Rear A/C
• Stability Control
• Cloth Seats
• Cruise Control
• Adjustable Steering Wheel
• Keyless Entry
• Power Outlet

• Vehicle
• Rear Door Type: Panel
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 3145
• Curb Weight - Rear (lbs): 2573
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
• Maximum Trailering Capacity (lbs): 6200
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.3
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.0 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2063
• Rear Tire Capacity (lbs): 2063
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 83.7
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): 49.4
• Ground to Top of Load Floor (in): 29.1
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 7.1
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 19.4
• Step Up Height - Side (in): 19.8

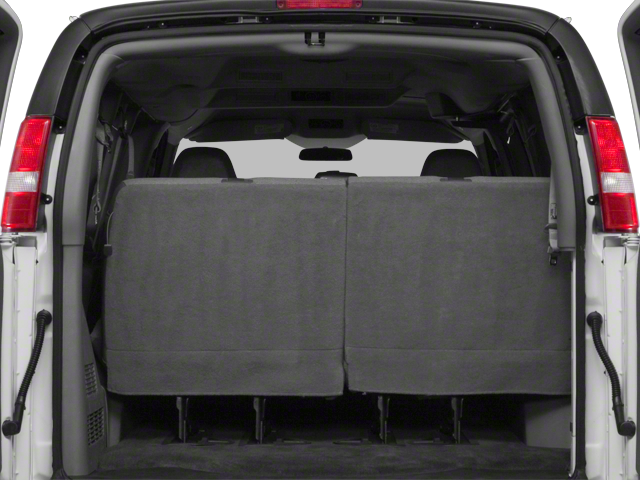

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 126.2
• Cargo Area Length @ Floor to Seat 2 (in): 89.1
• Cargo Area Length @ Floor to Seat 3 (in): 57.1
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.4
• Cargo Box (Area) Height (in): 51.8
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Interior Dimensions
• Passenger Capacity: 8
• Front Head Room (in): 39.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Second Head Room (in): 38.4
• Second Leg Room (in): 36.3
• Second Shoulder Room (in): 68.6
• Second Hip Room (in): 65.6
• Third Head Room (in): 38.5
• Third Leg Room (in): 36.6
• Third Shoulder Room (in): 65.8
• Third Hip Room (in): 63.3
• Summary

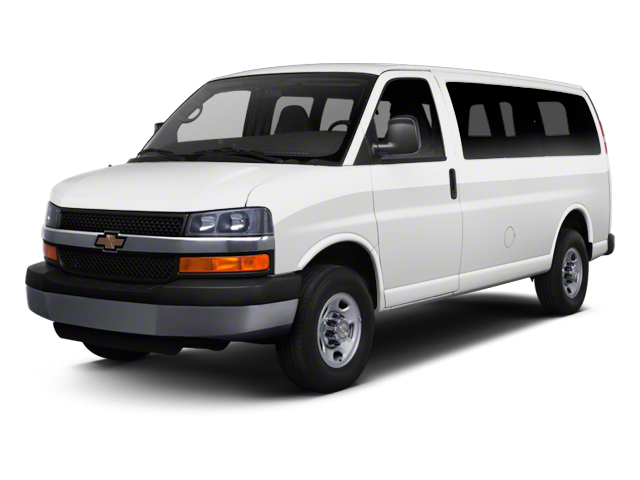

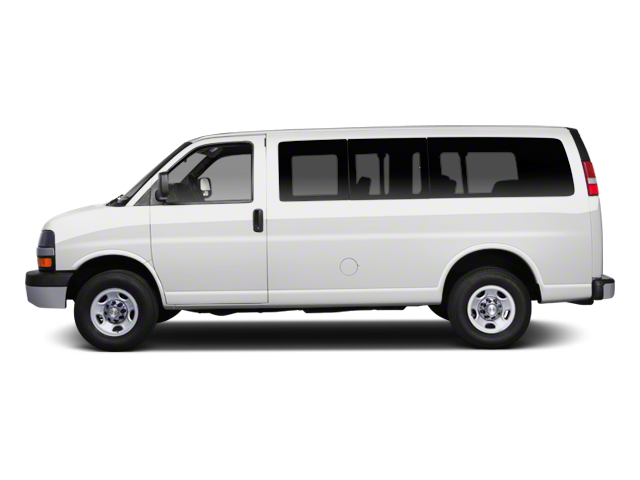

• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.1
